Data Sheet
| General | |
|---|---|
| Manufacturer | Fortinet |
| In assortment since | 23.07.2025 |
| Price Management | |
| Special Pricing | Standard |
| Licensing | |
| License package included | FortiGuard Advanced Threat Protection Bundle (ATP) |
| License Package Features | FortiCare Premium Support Intrusion Prevention System (IPS) Advanced Malware Protection (AMP) |
| License Term | 1 year |
| Application Area | |
| Typical application area | small to mid-size Businesses |
| Network Size Class | 10-50 users/devices |
| Interfaces | |

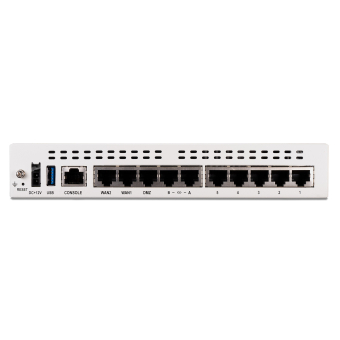

| 1-GbE-RJ45 Ports | 10x |
| Network | |
| Packets per second (Mpps) | 9 |
| Concurrent sessions | 700,000 |
| Concurrent Sessions (SSL) | 55,000 |
| New Sessions per second | 35,000 |
| Network latency | 4µs |
| Maximum supported switches (external) | 16 |
| Firewall | |
| Firewall Throughput | 10.0 Gbps |
| Threat Protection Throughput | 700 Mbps |
| IPS Throughput | 1.4 Gbps |
| Application Control Throughput | 1.8 Gbps |
| SSL Inspection Throughput | 750 Mbps |
| VPN | |
| IPSec VPN Throughput | 6.5 Gbps |
| SSL VPN throughput | 900 Mbps |
| Site-2-Site IPSec VPN Tunnels | 200 |
| Client VPN Tunnels | 700 |
| SSL VPN Client Licenses included | Unlimited (Starting from FortiOS 7.6.3, SSL VPN tunnel mode is no longer supported) |
| IPSec VPN Client Licenses included | Unlimited |
| Dimensions | |
| Form Factor | Desktop |
| Dimensions (WxDxH) | 216mm x 160mm x 38.0mm |
| Weight | 0.90 kg |
| Power Supply | |
| Power Supply | External Power Supply Unit |
| Number of Power Supply Units included / maximum | 1 / 1 |
