Trade-up offers - upgrade now at a special price
Fortinet FortiGuard license value bundles for your Fortinet FortiGate 3200D
Extend the protection capabilities of your Fortinet FortiGate 3200D with comprehensive security services from the Fortinet Security Fabric. You can license security services and support individually. Or you can opt for one of the attractive FortiGuard bundles, which combine FortiGuard services for different security requirements with FortiCare Premium manufacturer support at an affordable package price.
 Advanced ThreatProtection Bundle (ATP) |  Unified ThreatProtection Bundle (UTP) |  EnterpriseProtection Bundle | |
|---|---|---|---|
| FortiCare Premium 1Firmware updates, 24/7 manufacturer support and advance replacement of defective hardware with next-day shipping | |||
| Intrusion Prevention System (IPS)Blocking vulnerabilities and exploits by scanning network traffic | |||
| Advanced Malware Protection (AMP)Block known malware based on signature-based detection | |||
| Inline SaaS Application Security (CASB) 3,4Transparency, compliance, data and threat protection for cloud applications | |||
| Web SecurityBlock access to malicious domains and websites (malware, phishing, spam) | – | ||
| Anti-Spam-ServiceReduce the amount of spam and protect yourself from email threats | – | ||
| AI-based Inline Malware Prevention 2Block unknown malware, including ransomware, based on behavioral detection | – | – | |
| Attack Surface Security Rating 3Security self-test for configuration weaknesses with best-practice recommendations and detection of IoT devices | – | – | |
| Data Loss PreventionBlock data theft, confidentiality breaches and exfiltration of sensitive data | – | – | |
| FortiConverterEasy migration of your existing firewall configurations to FortiGate-based policies (one-time conversion possible) | – | – |
Other services from the Fortinet Security Fabric such as OT Security, SD-WAN and SASE Services as well as NOC and SOC Services for your Fortinet FortiGate 3200D can be purchased individually. The extended support services such as FortiCare Elite (15-minute SLA) and the Premium RMA Services (Next-Day Delivery, 4-Hour-Delivery, 4-Hour Delivery and Onsite Engineer, Secure RMA) can also be ordered individually.

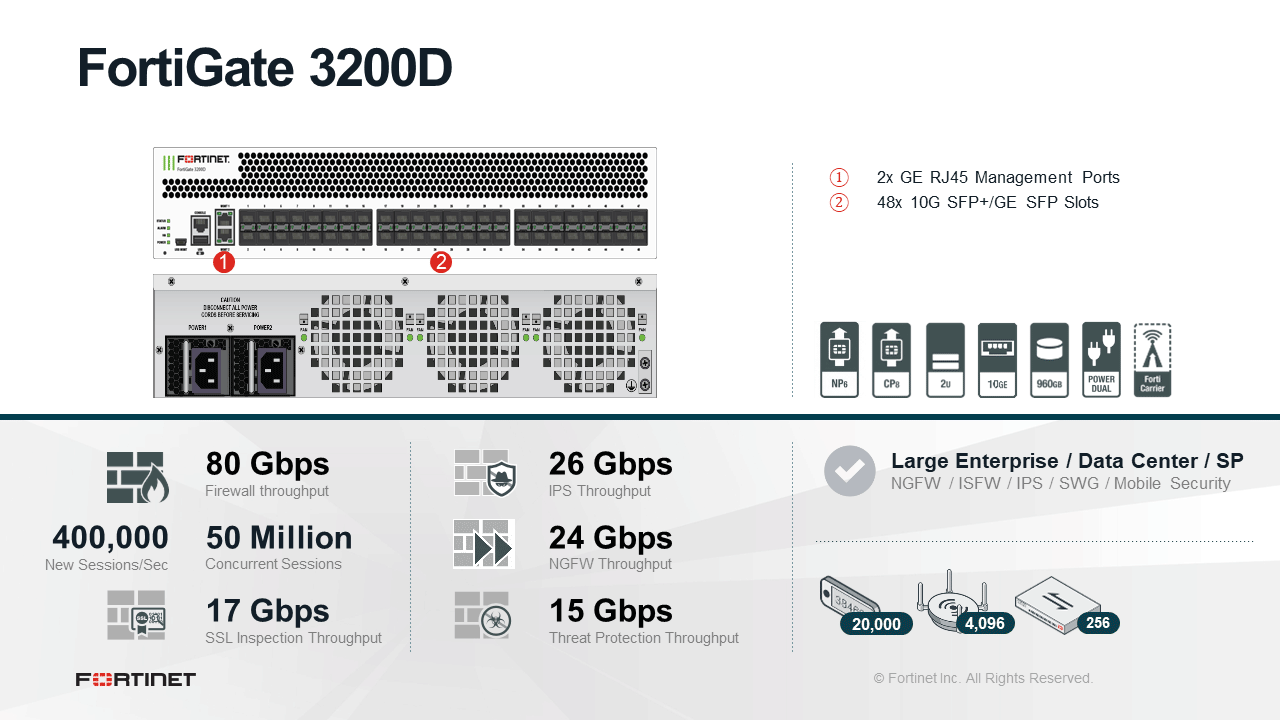

Data Sheet
| General | |
|---|---|
| Manufacturer | Fortinet |
| In assortment since | 23.04.2021 |
| Price Management | |
| Special Pricing | Standard |
| Licensing | |
| License package included | FortiGuard Advanced Threat Protection Bundle (ATP) |
| License Package Features | FortiCare Premium Support Intrusion Prevention System (IPS) Advanced Malware Protection (AMP) |
| License Term | 1 year |
| Application Area | |
| Typical application area | large datacenters and service providers |
| Network Size Class | more than 1,000 users/devices |
| Interfaces | |
| 1-GbE-RJ45 Ports | 2x (MGMT) |
| 10-GbE-SFP+ Ports | 48x (10-GE SFP+ / 1-GE SFP) |
| Data Storage | |
| Storage Capacity | 480 GB (2x 480 GB SSD) |
| Network | |
| Packets per second (Mpps) | 75 |
| Concurrent sessions | 50,000,000 |
| Concurrent Sessions (SSL) | 3,500,000 |
| New Sessions per second | 400,000 |
| Network latency | 3µs |
| Maximum supported switches (external) | 256 |
| Firewall | |
| Firewall Throughput | 80.0 Gbps |
| Threat Protection Throughput | 15.0 Gbps |
| IPS Throughput | 26.0 Gbps |
| Application Control Throughput | 50.0 Gbps |
| SSL Inspection Throughput | 17.0 Gbps |
| VPN | |
| IPSec VPN Throughput | 50.0 Gbps |
| SSL VPN throughput | 8.0 Gbps |
| Site-2-Site IPSec VPN Tunnels | 40,000 |
| Client VPN Tunnels | 230,000 (200.000 IPSec (max.), 30.000 concurrent SSL VPN users) |
| SSL VPN Client Licenses included | Unlimited |
| IPSec VPN Client Licenses included | Unlimited |
| Wireless | |
| Maximum supported Access Points | 4,096 (2048 in FortiAP Tunnel Mode) |
| Dimensions | |
| Form Factor | 19-inch rack mount (2U) |
| Dimensions (WxDxH) | 442mm x 555mm x 88.0mm |
| Weight | 17.20 kg |

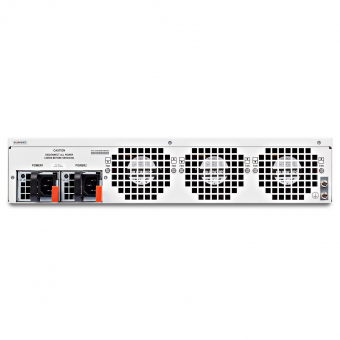

| Power Supply | |
| Power Supply | Internal Power Supply Unit, Hot Swappable |
| Number of Power Supply Units included / maximum | 2 / 2 |
